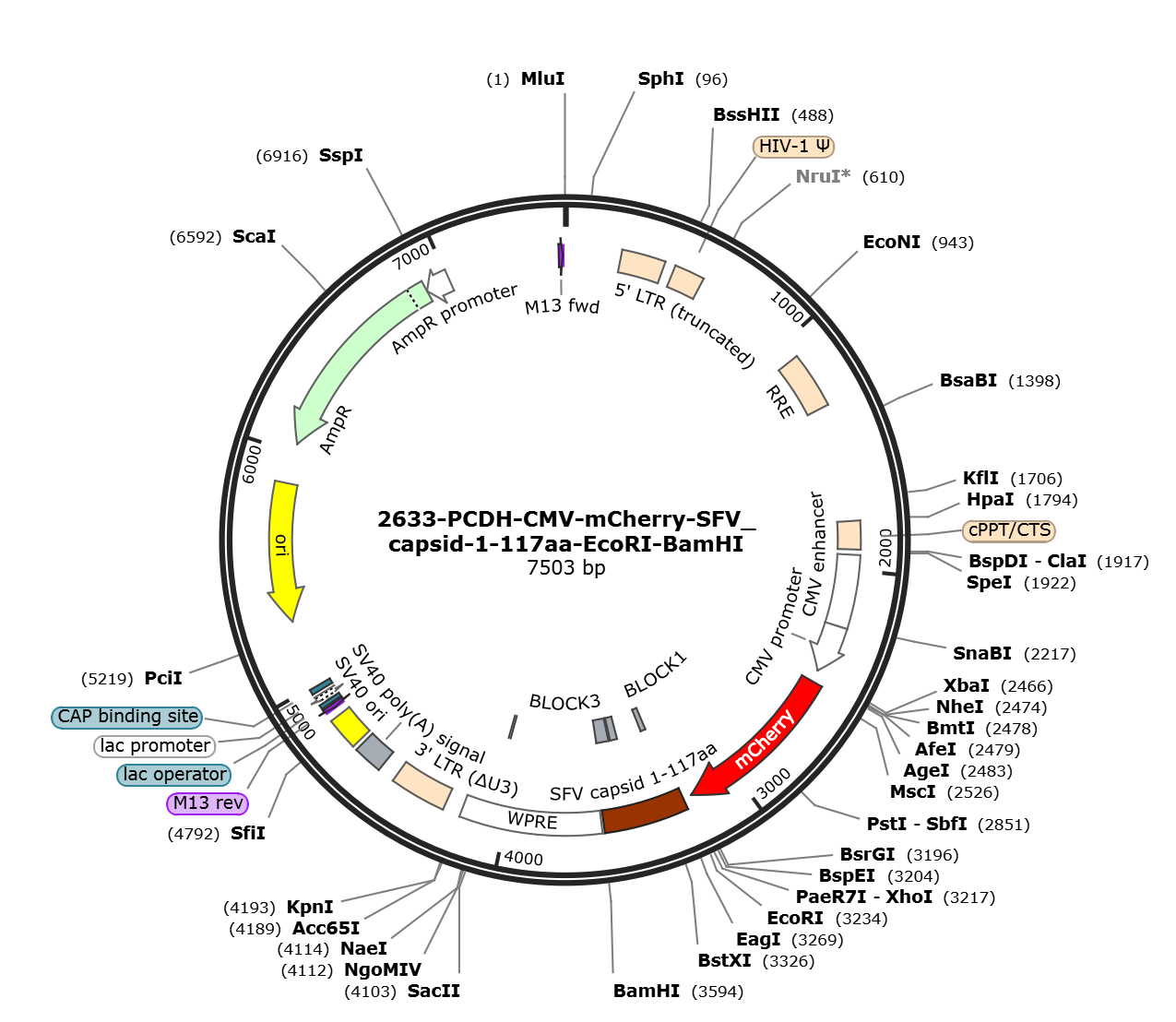

pCDH-CMV-mCherry-SFV capsid-1-117aa

LOCUS       pCDH-CMV-mCherry-SFV capsid-1-117aa                7503 bp DNA     circular SYN 29-FEB-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7503)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7503
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3240..3590
                     /label=SFV capsid 1-117aa
     misc_feature    3273..3302
                     /label=BLOCK1
     misc_feature    3447..3488
                     /label=BLOCK2
     misc_feature    3498..3569
                     /label=BLOCK3
     misc_feature    3600..4187
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4071..4082)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4260..4493
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4565..4686
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4705..4840
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4878..4894)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4902..4918
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4926..4956)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4971..4992
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5280..5868)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6039..6899)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6900..7004)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7478..7494
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgaattacat ccctacgcaa acgttttacg gccgccggtg gcgcccgcgc ccggcggccc
     3301 gtccctggcc gttgcaggcc actccggtgg ctcccgtcgt ccccgacttc caggcccagc
     3361 agatgcagca actcatcagc gccgtaaatg cgctgacaat gagacagaac gcaattgctc
     3421 ctgctaggcc tcccaaacca aagaagaaga agacaaccaa accaaagccg aaaacgcagc
     3481 ccaagaagat caacggaaaa acgcagcagc aaaagaagaa agacaagcaa gccgacaaga
     3541 agaagaagaa acccggaaaa agagaaagaa tgtgcatgaa gattgaaaat tgaggatcca
     3601 atcaacctct ggattacaaa atttgtgaaa gattgactgg tattcttaac tatgttgctc
     3661 cttttacgct atgtggatac gctgctttaa tgcctttgta tcatgctatt gcttcccgta
     3721 tggctttcat tttctcctcc ttgtataaat cctggttgct gtctctttat gaggagttgt
     3781 ggcccgttgt caggcaacgt ggcgtggtgt gcactgtgtt tgctgacgca acccccactg
     3841 gttggggcat tgccaccacc tgtcagctcc tttccgggac tttcgctttc cccctcccta
     3901 ttgccacggc ggaactcatc gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt
     3961 tgggcactga caattccgtg gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg
     4021 cctgtgttgc cacctggatt ctgcgcggga cgtccttctg ctacgtccct tcggccctca
     4081 atccagcgga ccttccttcc cgcggcctgc tgccggctct gcggcctctt ccgcgtctcc
     4141 gccttcgccc tcagacgagt cggatctccc tttggccgcc tccccgccgg tacctttaag
     4201 accaatgact tacaaggcag ctgtagatct tagccacttt ttaaaagaaa aggggggact
     4261 ggaagggcta attcactccc aacgaaaata agatctgctt tttgcttgta ctgggtctct
     4321 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
     4381 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
     4441 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtagtag
     4501 ttcatgtcat cttattattc agtatttata acttgcaaag aaatgaatat cagagagtga
     4561 gaggaacttg tttattgcag cttataatgg ttacaaataa agcaatagca tcacaaattt
     4621 cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac tcatcaatgt
     4681 atcttatcat gtctggctct agctatcccg cccctaactc cgcccagttc cgcccattct
     4741 ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct
     4801 gagctattcc agaagtagtg aggaggcttt tttggaggcc tagacttttg cagagacggc
     4861 ccaaattcgt aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt
     4921 ccacacaaca tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc
     4981 taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc
     5041 cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct
     5101 tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca
     5161 gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac
     5221 atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt
     5281 ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg
     5341 cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc
     5401 tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc
     5461 gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc
     5521 aagctgggct gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac
     5581 tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt
     5641 aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct
     5701 aactacggct acactagaag gacagtattt ggtatctgcg ctctgctgaa gccagttacc
     5761 ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt
     5821 ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg
     5881 atcttttcta cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc
     5941 atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa
     6001 tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag
     6061 gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg
     6121 tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga
     6181 gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag
     6241 cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa
     6301 gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc
     6361 atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca
     6421 aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg
     6481 atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat
     6541 aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc
     6601 aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg
     6661 gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg
     6721 gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt
     6781 gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca
     6841 ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata
     6901 ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac
     6961 atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa
     7021 gtgccacctg acgtctaaga aaccattatt atcatgacat taacctataa aaataggcgt
     7081 atcacgaggc cctttcgtct cgcgcgtttc ggtgatgacg gtgaaaacct ctgacacatg
     7141 cagctcccgg agacggtcac agcttgtctg taagcggatg ccgggagcag acaagcccgt
     7201 cagggcgcgt cagcgggtgt tggcgggtgt cggggctggc ttaactatgc ggcatcagag
     7261 cagattgtac tgagagtgca ccatatgcgg tgtgaaatac cgcacagatg cgtaaggaga
     7321 aaataccgca tcaggcgcca ttcgccattc aggctgcgca actgttggga agggcgatcg
     7381 gtgcgggcct cttcgctatt acgccagctg gcgaaagggg gatgtgctgc aaggcgatta
     7441 agttgggtaa cgccagggtt ttcccagtca cgacgttgta aaacgacggc cagtgccaag
     7501 ctg
//
